As industrial environmental regulations tighten, the treatment of circulating water in water-curtain booths—widely used in sectors such as furniture, automotive hardware, construction machinery, and 3C device casings to capture paint mist—has become a focal point for environmental inspections and green production audits. Prolonged operation leads to the accumulation of resins, pigments, and emulsified paint sludge in the circulating water, resulting in foul odors and turbid, blackened water, which creates various operational and environmental challenges. Traditional methods—relying on manual sludge removal and periodic full-tank water replacement—suffer from significant water waste, high labor costs, and steep disposal fees for hazardous paint sludge; furthermore, they often lead to issues such as clogged pipes and pumps, paint finish defects, and non-compliance with environmental standards requiring corrective action.

The integrated paint-water separation unit is a closed-loop water treatment system specifically designed for paint-laden wastewater from water-curtain booths and spray towers. It provides a one-stop solution that handles detackification, sludge flotation and separation, and the recycling of clarified water, establishing itself as a standard piece of environmental protection equipment for painting workshops.

I. Four Major Pain Points in Traditional Water Curtain Booth Wastewater Treatment

1. Rapid deterioration of circulating water quality affects the quality of finished spray-painted products.

Untreated circulating water becomes turbid and sticky due to suspended fine paint mist particles; the water curtain's efficiency in capturing paint mist steadily declines. Painted workpieces are prone to defects such as pitting and particulate inclusions, leading to higher rework rates. Prolonged anaerobic fermentation of the water generates pungent odors, polluting the workshop environment.

2. Frequent complete water replacement results in massive water resource loss.

Conventional water curtain tanks require total drainage and refilling every week. A single paint line consumes hundreds of tons of water monthly, resulting in high water costs. Discharging large volumes of high-COD paint wastewater also carries a high risk of environmental regulatory penalties.

3. Manual sludge removal is labor-intensive, and hazardous waste disposal costs are exorbitant.

Viscous paint sludge accumulates at the bottom of the tank, requiring manual entry for removal—a dirty, inefficient process. Raw paint sludge has a water content exceeding 80%, resulting in heavy hazardous waste loads and consistently high disposal expenses.

4. Paint sludge clogs pipelines and pumps, necessitating frequent equipment maintenance.

Fine paint sludge adheres to pumps, pipelines, and the inner walls of water curtain panels during circulation, causing reduced flow and pipe blockages. Clearing these obstructions requires shutting down and dismantling equipment, directly interrupting production and driving up maintenance costs.

II. Core Functions and Advantages of the Tieshanyuan Integrated Paint-Water Separation Unit

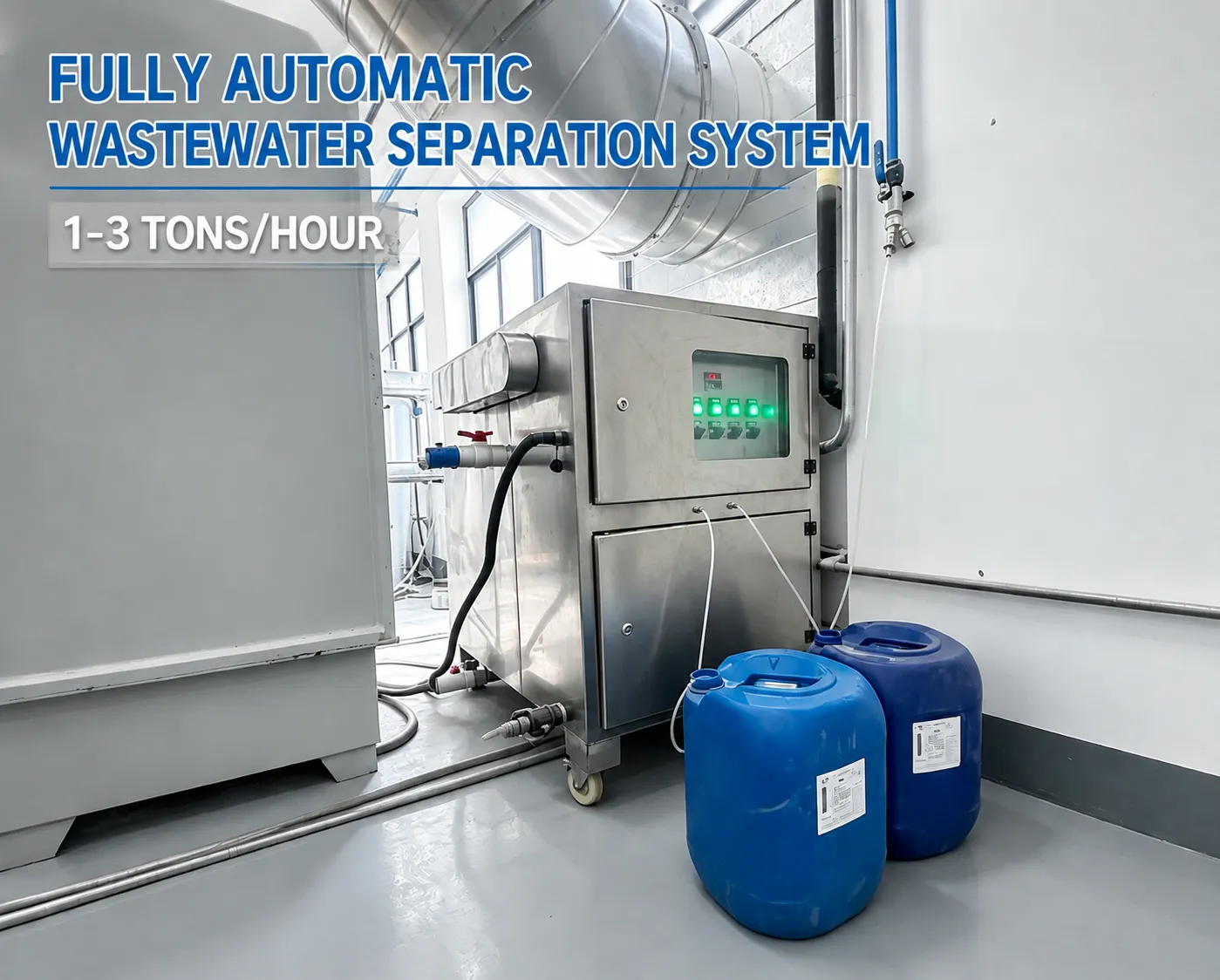

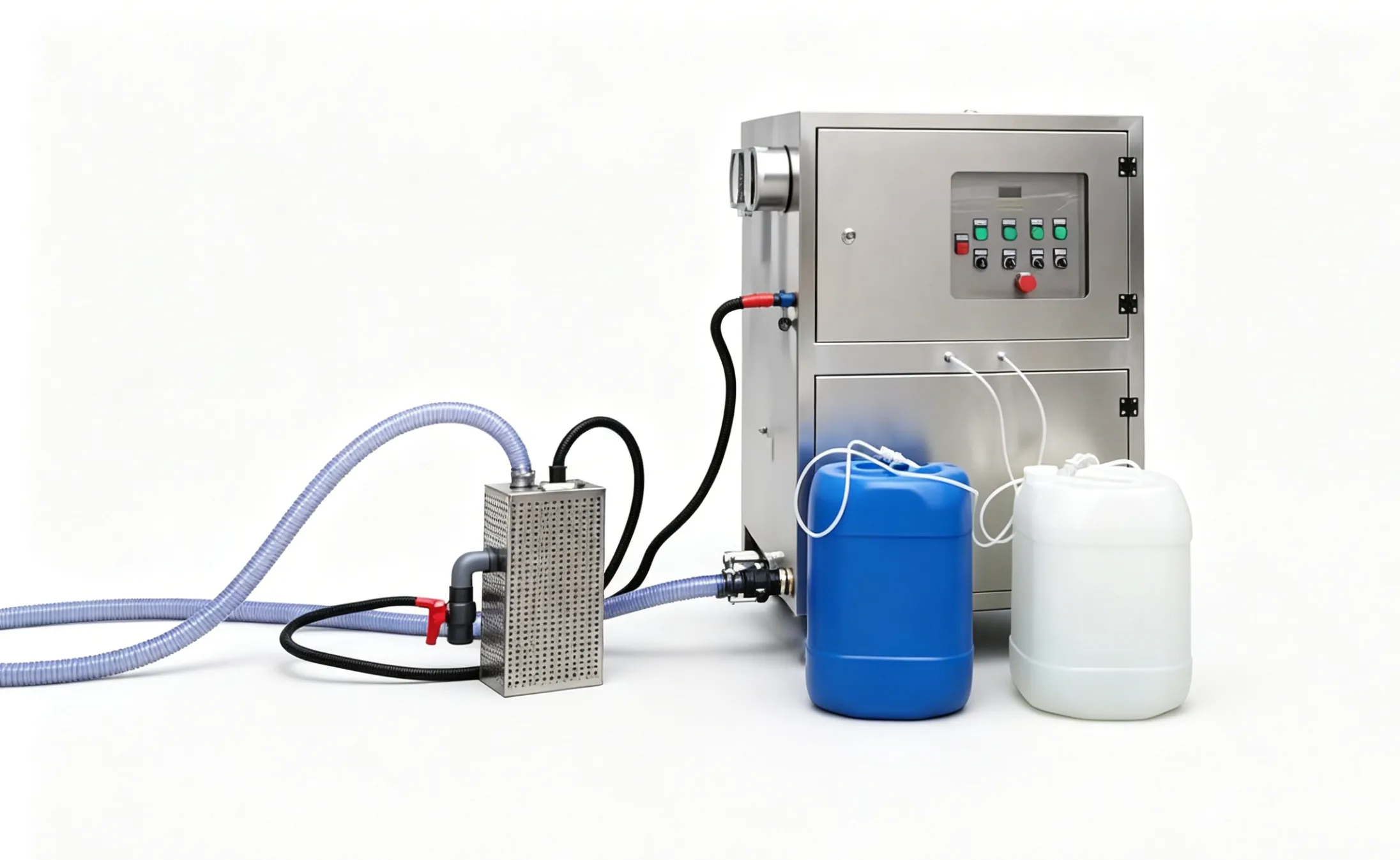

Constructed from 304 stainless steel, the unit integrates an automatic chemical dosing system, a dissolved air flotation (DAF) device, and an automatic sludge skimming and discharge system. Compact models can be equipped with an optional paint sludge dewatering unit. It is suitable for applications ranging from single water-curtain booths to large-scale centralized spray booth sump bypass circulation systems.

1. Efficient Paint Sludge Separation; Compatible with All Paint Types

Utilizing specialized "A/B" detackifying agents, the system achieves effective emulsion breaking and flocculation for oil-based, water-based, UV-cured, metallic, and wood coatings. Micron-sized bubbles capture ultrafine paint mist particles, achieving a sludge separation efficiency of over 99%. The treated water remains clear and transparent, maintaining consistent water-curtain absorption performance and improving the yield rate of painted products.

2. Closed-Loop Water Recycling; Near-Zero Wastewater Discharge

Purified water flows back to the spray booth sump for reuse, extending the water replacement cycle several-fold. A single workshop can save over a thousand tons of water annually, reducing industrial wastewater discharge at the source and meeting "Green Factory" water conservation audit requirements.

3. Fully Automated Operation; Labor-Saving

Features one-touch startup, automatic metered chemical dosing, timed sludge skimming, and stable 24-hour continuous operation. No dedicated personnel are required for manual sludge skimming, significantly reducing labor costs associated with cleaning and maintenance.

4. Paint Sludge Volume Reduction; Lower Hazardous Waste Costs

Separated sludge forms dry, non-sticky flocs. An optional dewatering module can reduce the sludge's water content to below 50%, cutting the weight of hazardous waste for removal by over 60% and significantly lowering long-term costs for hazardous waste transport and disposal.

5. Compact Footprint and Easy Installation; Suitable for Retrofitting Older Workshops

The skid-mounted, integrated unit requires no major civil engineering work; it simply connects to the water-curtain sump's inlet and outlet piping. It can be placed in a corner of the spray workshop or in an equipment room to operate via bypass circulation.

III. Complete Workflow of the Integrated Paint-Water Separation Unit

1. Collection & Lifting: Paint-laden wastewater from the water curtain booth is pumped into the equipment's reaction chamber.

2. Chemical Reaction: Metering pumps automatically dose de-tackifying and coagulating agents; paint colloids in the water are destabilized and agglomerate into flocculent paint sludge.

3. Dissolved Air Flotation: Micro-bubbles carry the paint sludge to the water surface, while clarified water settles and separates.

4. Automatic Sludge Skimming: A timed skimming mechanism scrapes surface sludge into a collection container; optional dewatering presses can be added, or the unit can be configured as an integrated separation and extrusion machine.

5. Water Purification: The separated, clarified water is recirculated back to the water curtain booth for continuous use.

IV. Industry-Wide Application Scenarios

1. Furniture & Woodwork Spray Booths: Recirculating water treatment for solvent-based or water-based paint systems used on solid wood and panel furniture.

2. Hardware & Auto Parts Spray Lines: Wastewater treatment for electrostatic painting of automotive components, metal guardrails, and agricultural machinery.

3. 3C Plastic Housing Coating: Suitable for small water curtain booths and automated spray lines for small-batch components.

4. Large-Scale Engineering Machinery Spray Booths: Centralized purification of recirculating water for large water-spin (hydro-spin) curtain systems.

5. Small Workshops (Single Booths): Compact, mini integrated separation units offering low investment and rapid implementation.

6. Exhaust Scrubber Integration: Simultaneous purification of recirculating spray-scrubbing water used in exhaust gas treatment systems.

V. One-Stop Implementation Services

For new coating facilities and environmental upgrades of existing spray shops, the manufacturer provides comprehensive services including free site surveys, water circulation system design, equipment sizing and specification selection, and on-site installation and commissioning. Equipment is supplied with environmental compliance documentation and operation/maintenance manuals to facilitate environmental inspections and "water-saving factory" certifications. The system comes with a full warranty, long-term supply of specialized paint-mist coagulants, and remote technical support, creating a water-saving, cost-effective, compliant, and efficient recirculating water treatment system for coating enterprises.
