Home > Product > Oil-Water Separation > 201 Stainless Steel Underground Three-Stage Grease Trap

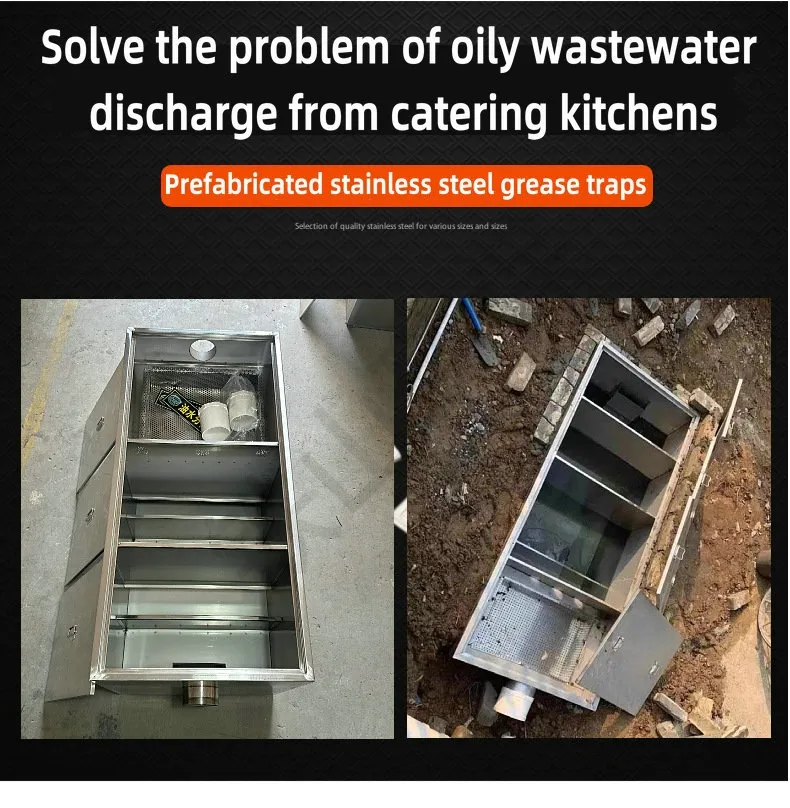

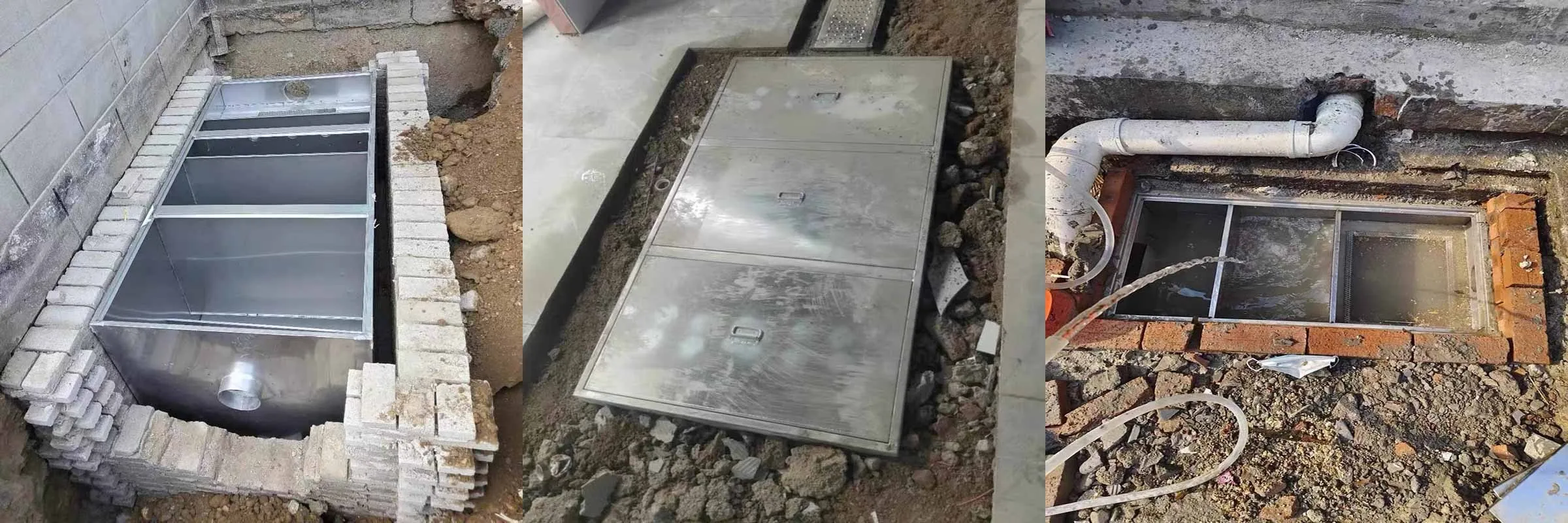

201 Stainless Steel Underground Three-Stage Grease Trap

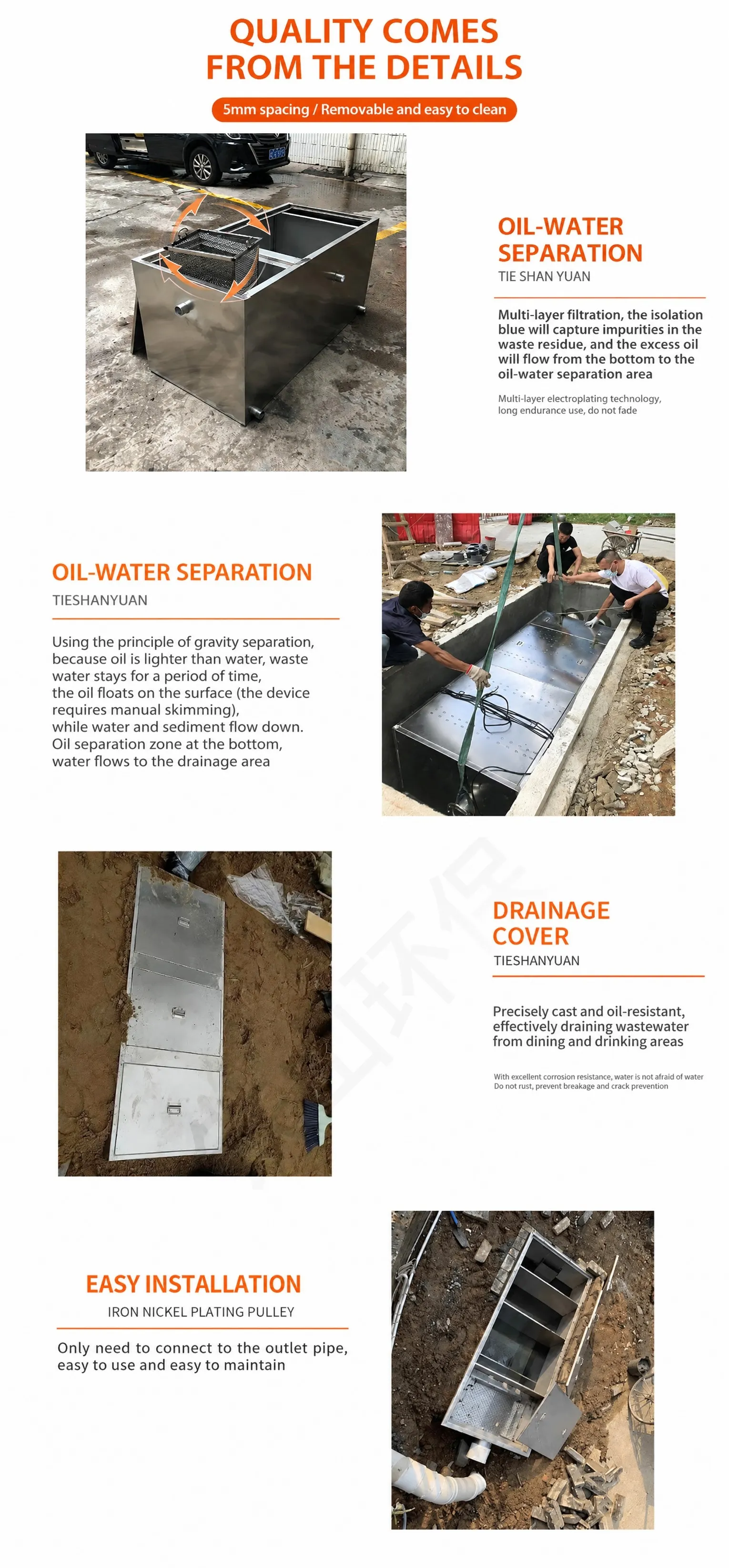

Rapid Separation of Oil and Sludge in Kitchens; Environmentally Friendly Grease Trap Manufacturer for Canteens and Restaurants.
Product Inquiry Add to Quote List
Product Details
Product Details

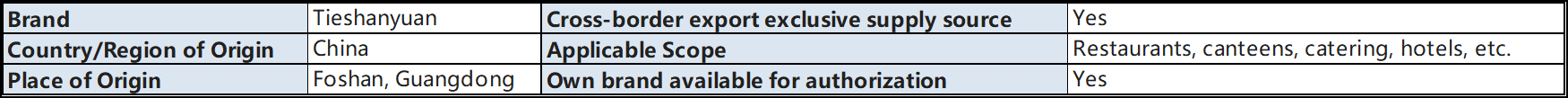

BrandTieshanyuanCross-border   export exclusive supply sourceYes

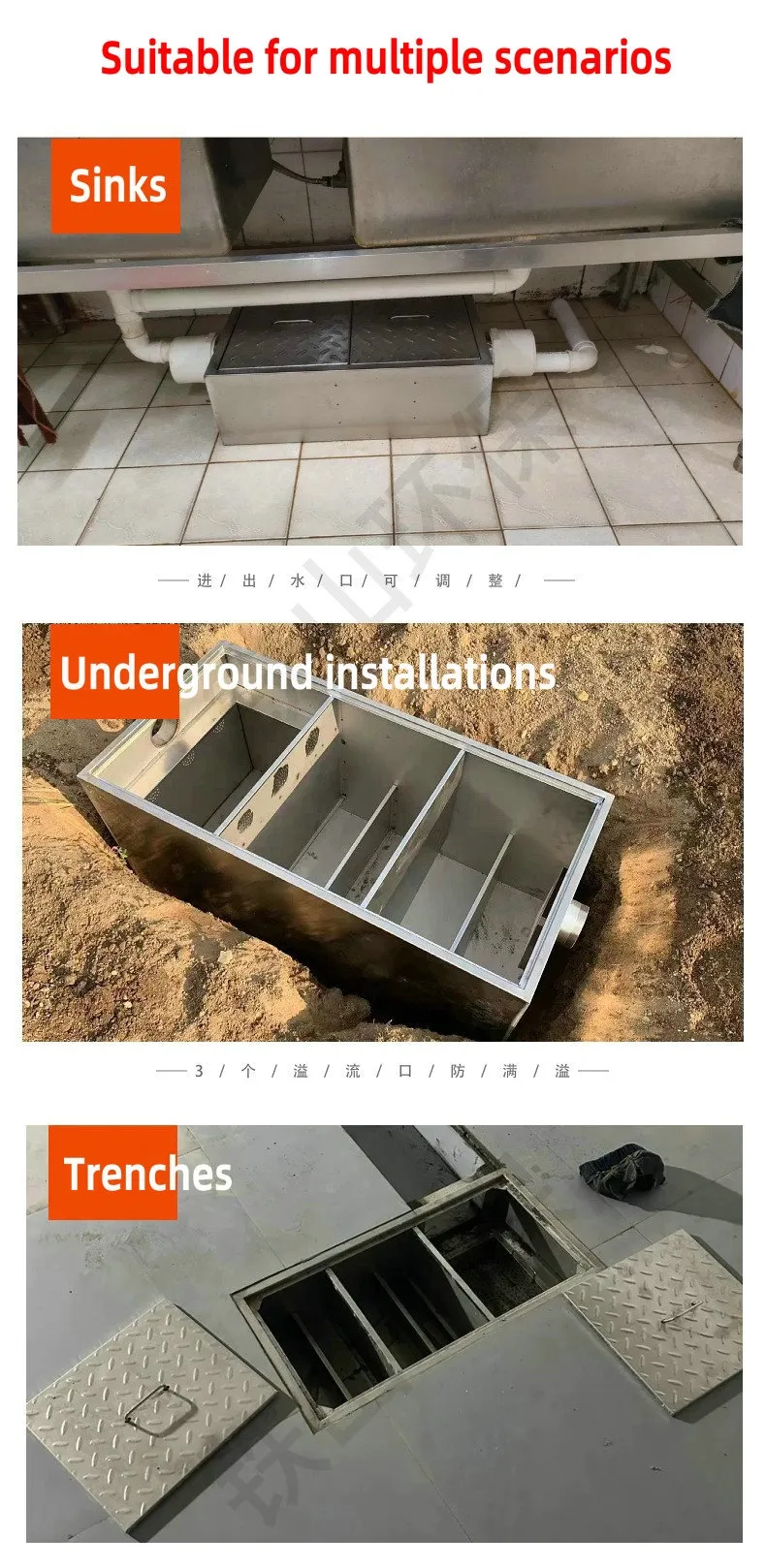

Country/Region   of OriginChinaApplicable ScopeRestaurants,   canteens, catering, hotels, etc.
Place of   OriginFoshan, GuangdongOwn brand available   for authorizationYes

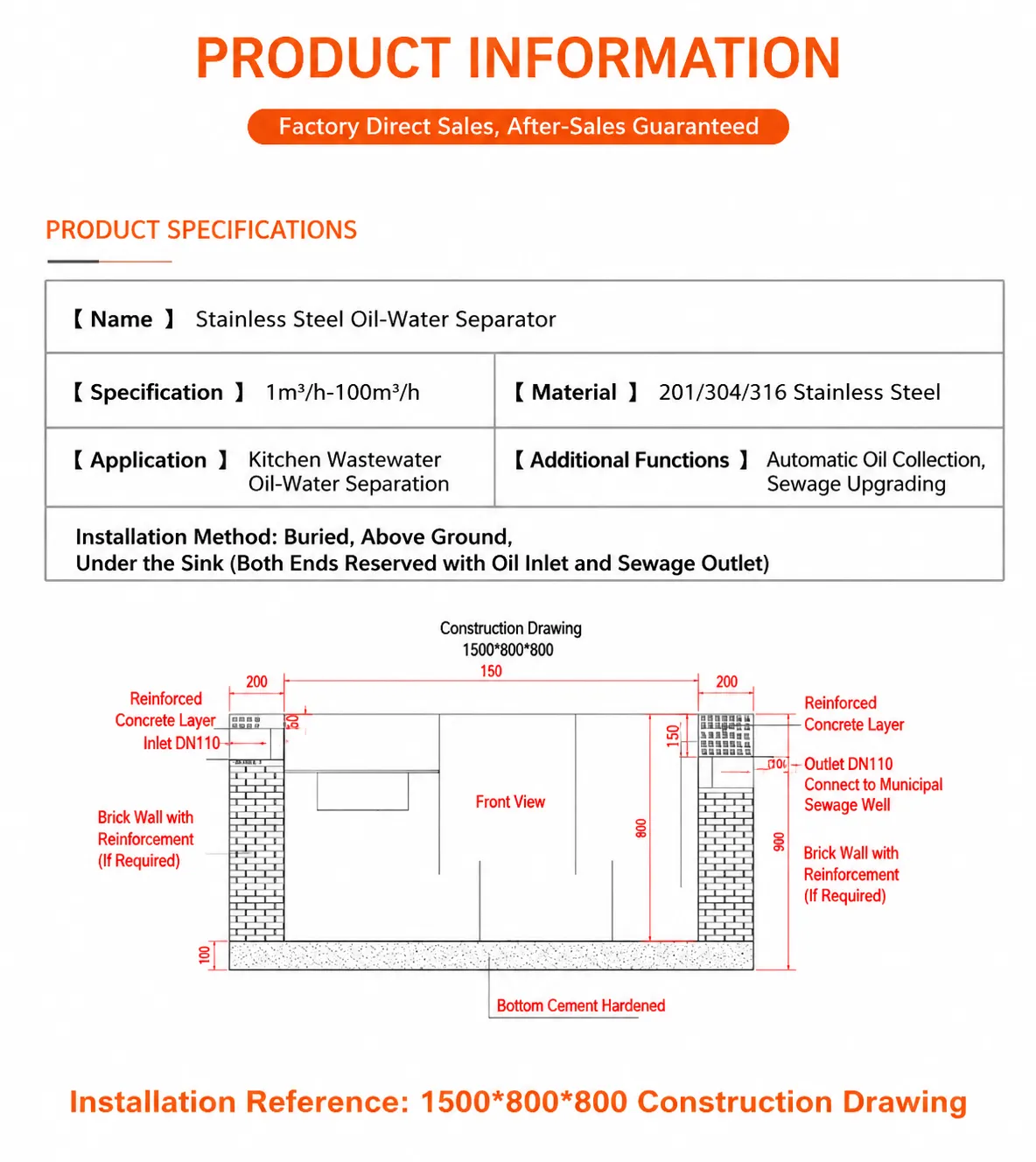

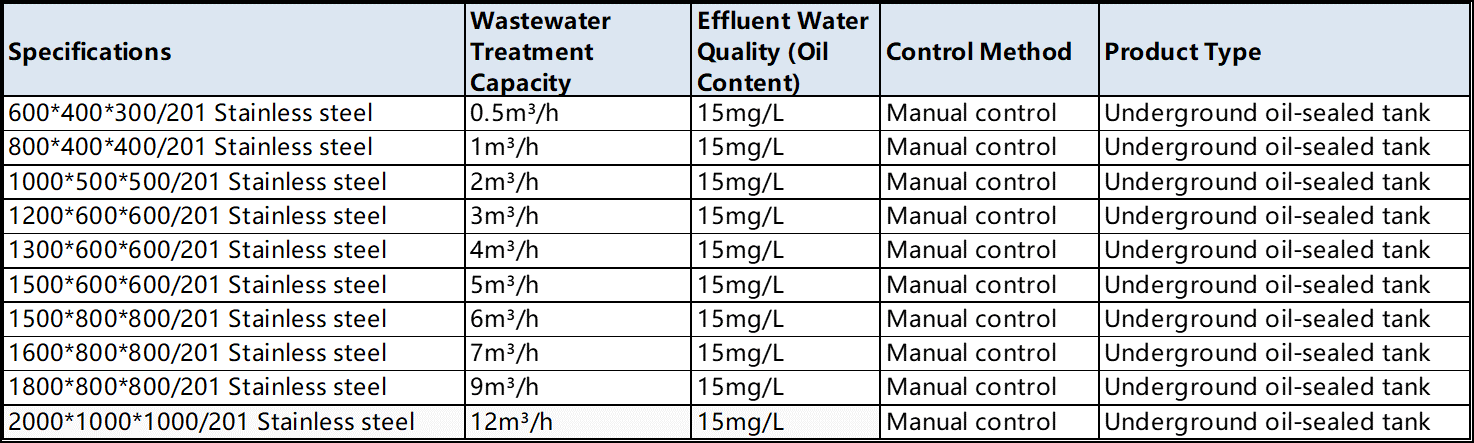

SpecificationsWastewater   Treatment CapacityEffluent Water   Quality (Oil Content)Control MethodProduct Type
600*400*300/201   Stainless steel0.5m³/h15mg/LManual controlUnderground   oil-sealed tank
800*400*400/201   Stainless steel1m³/h15mg/LManual controlUnderground   oil-sealed tank
1000*500*500/201   Stainless steel2m³/h15mg/LManual controlUnderground   oil-sealed tank
1200*600*600/201   Stainless steel3m³/h15mg/LManual controlUnderground   oil-sealed tank
1300*600*600/201   Stainless steel4m³/h15mg/LManual controlUnderground   oil-sealed tank
1500*600*600/201   Stainless steel5m³/h15mg/LManual controlUnderground   oil-sealed tank
1500*800*800/201   Stainless steel6m³/h15mg/LManual controlUnderground   oil-sealed tank
1600*800*800/201   Stainless steel7m³/h15mg/LManual controlUnderground   oil-sealed tank
1800*800*800/201   Stainless steel9m³/h15mg/LManual controlUnderground   oil-sealed tank
2000*1000*1000/201   Stainless steel12m³/h15mg/LManual controlUnderground   oil-sealed tank

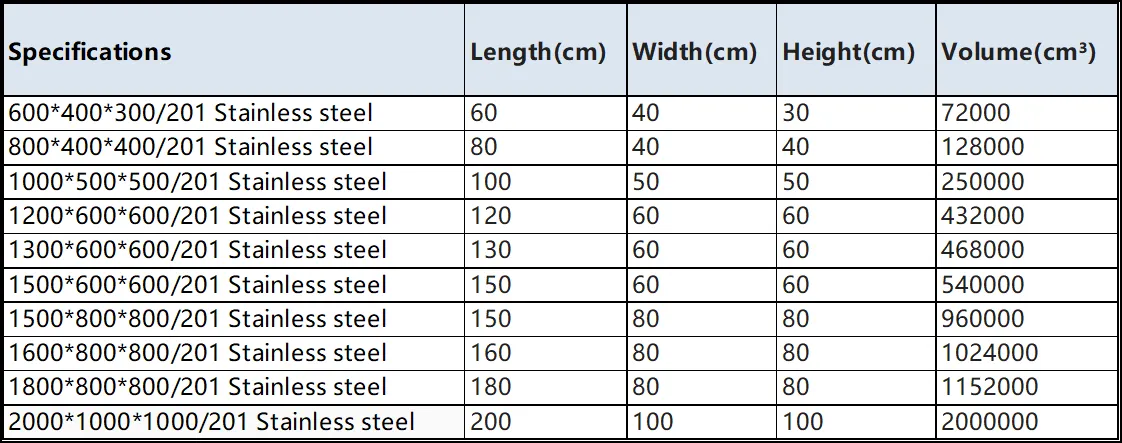

SpecificationsLength(cm)Width(cm)Height(cm)Volume(cm³)
600*400*300/201   Stainless steel60403072000
800*400*400/201   Stainless steel804040128000
1000*500*500/201   Stainless steel1005050250000
1200*600*600/201   Stainless steel1206060432000
1300*600*600/201   Stainless steel1306060468000
1500*600*600/201   Stainless steel1506060540000
1500*800*800/201   Stainless steel1508080960000
1600*800*800/201   Stainless steel16080801024000
1800*800*800/201   Stainless steel18080801152000
2000*1000*1000/201   Stainless steel2001001002000000
